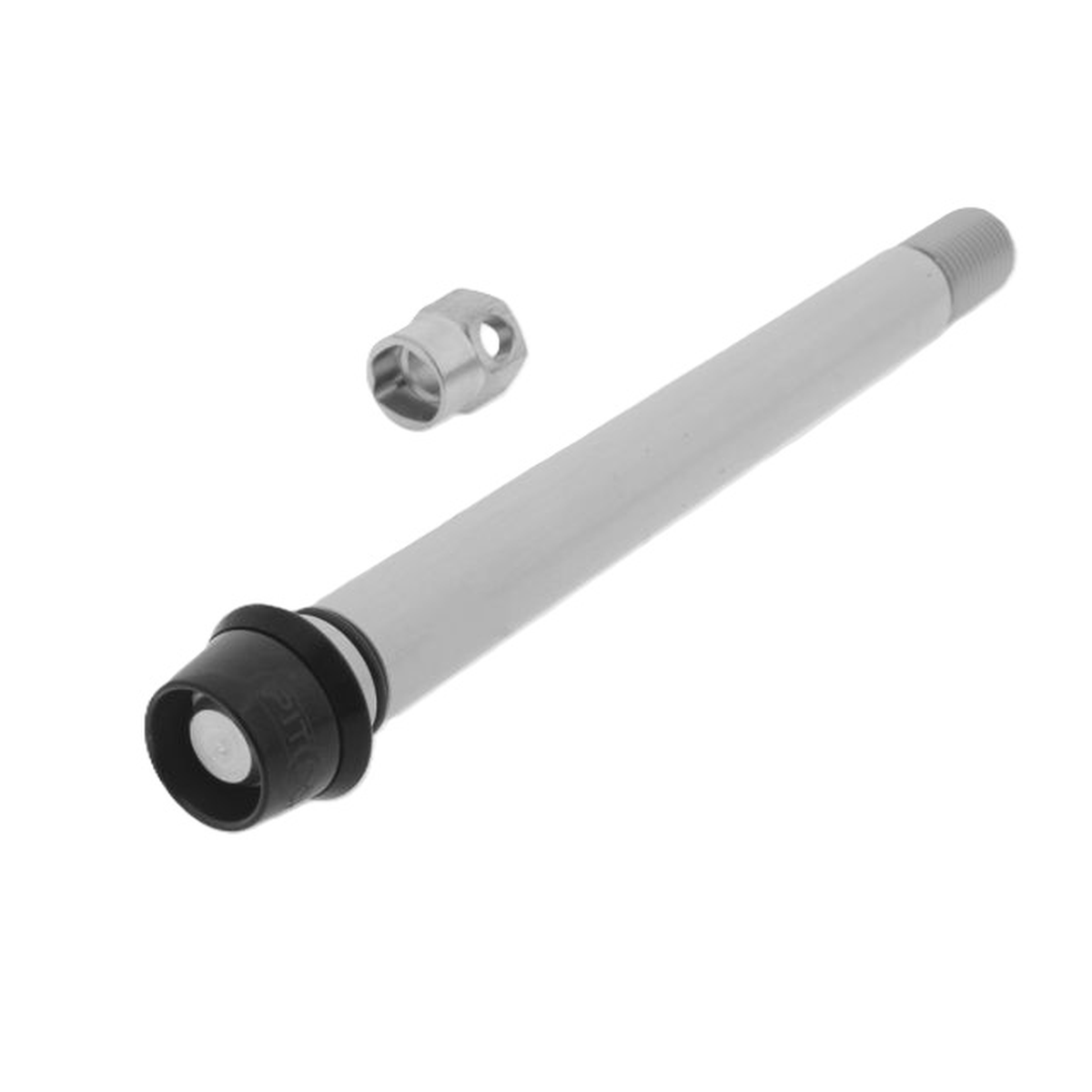

Pitlock Set 18B for 15mm BOOST Fox MTB Thru Axle

The Pitlock Set 18B for Fox MTB forks with BOOST thru axle protect the wheels of your beloved bicycle from unauthorised disassembly.

All you need to do is replace the front wheel axle with the Pitlock version. The specially milled, coded nut of the axle can only be loosened with the matching Pit key. There are over 1000 different key combinations available. Besides, the handy Pit adapter is small enough for your key ring, so that you can remove your front wheel whenever you want.

For other bikes, you can even individually order coded M5/M6 Pitlocks for additional thru axles, tensions axles, brakes and saddle clamps (e.g. product code: 1507032) that match your code system. Thus, high-quality components are perfectly protected from theft. When will you pitlock your bike?

Details:
• Pitlock front wheel axle
• Compatible with Fox QR BOOST thru axle
• Coded nut with key
• Supplementary order after registration
• Easy to fit within seconds

Technical details:
• Front wheel: 15 x 110 mm (Boost)
• Total length: approx. 156 mm
• Thread length: 20 mm
• Thread pitch: M14 x 1.5 mm
• Material: aluminium / stainless steel
• Weight: approx. 88 g (without Pit key)

In the box:
• 1 Pitlock security axle with M5/M6 closure
• 1 M5/M6 Pit key
• 2 code cards

Note:
Replaces 15 mm Fox Racing Shox QR BOOST thru axle. Not compatible with other thru axle systems! To make sure the Pitlock security system fits your bike you can simply compare the dimensions with those of the original axle. For more information see the comparative scale for thru axles (simply click on the button).

Tip:
For a uniform appearance and protection, the coded screw heads can be covered with a matching Pilock aluminium cap for the lockring (prod. code: 2288618) or alternatively you can screw on the conical end cap (prod. code: 2288664).


Manufacturer: Peter Busse Sicherheitstechnik, Wilhelm-von-Siemens-Str. 23 Haus F, 12277 Berlin, Deutschland, www.pitlock.de
