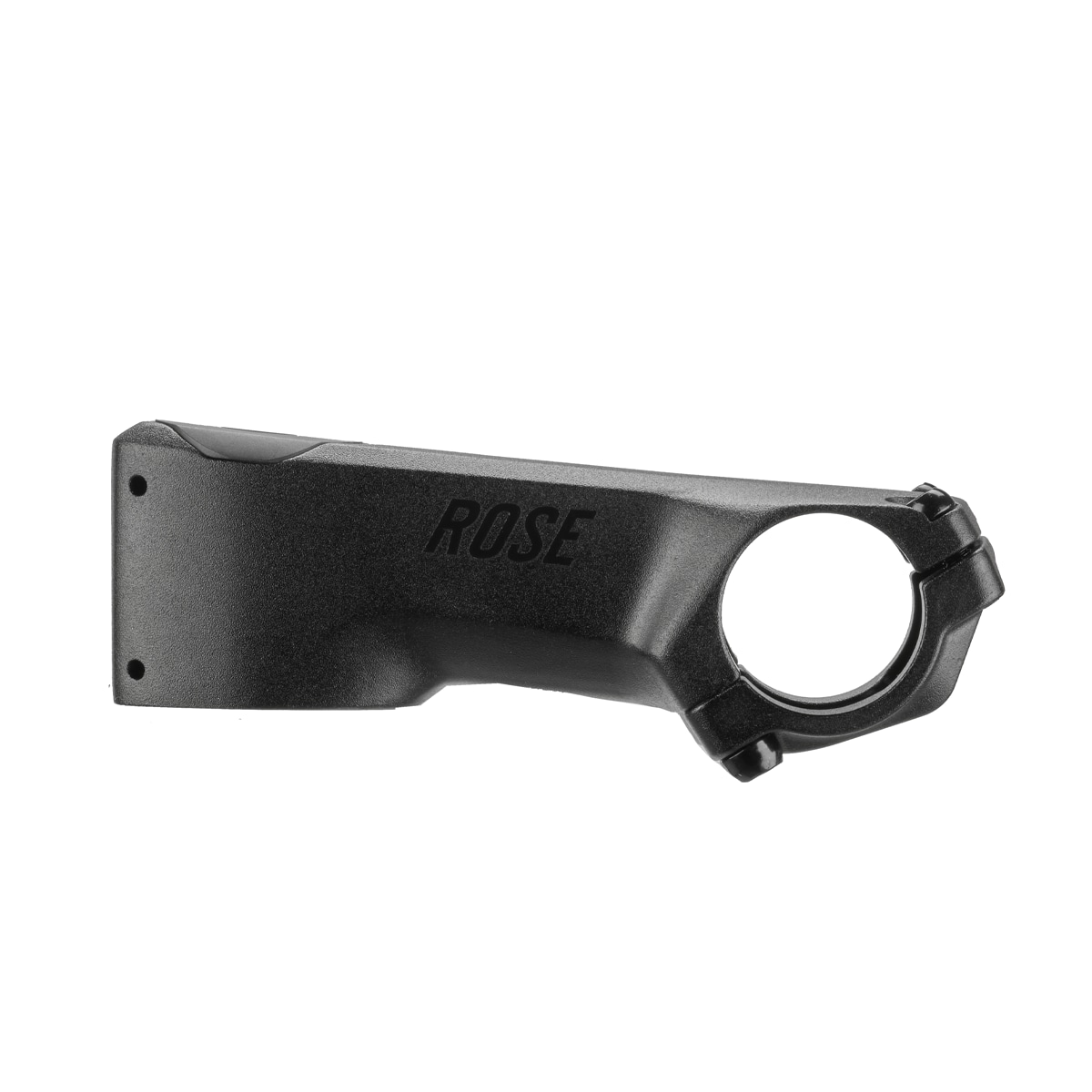

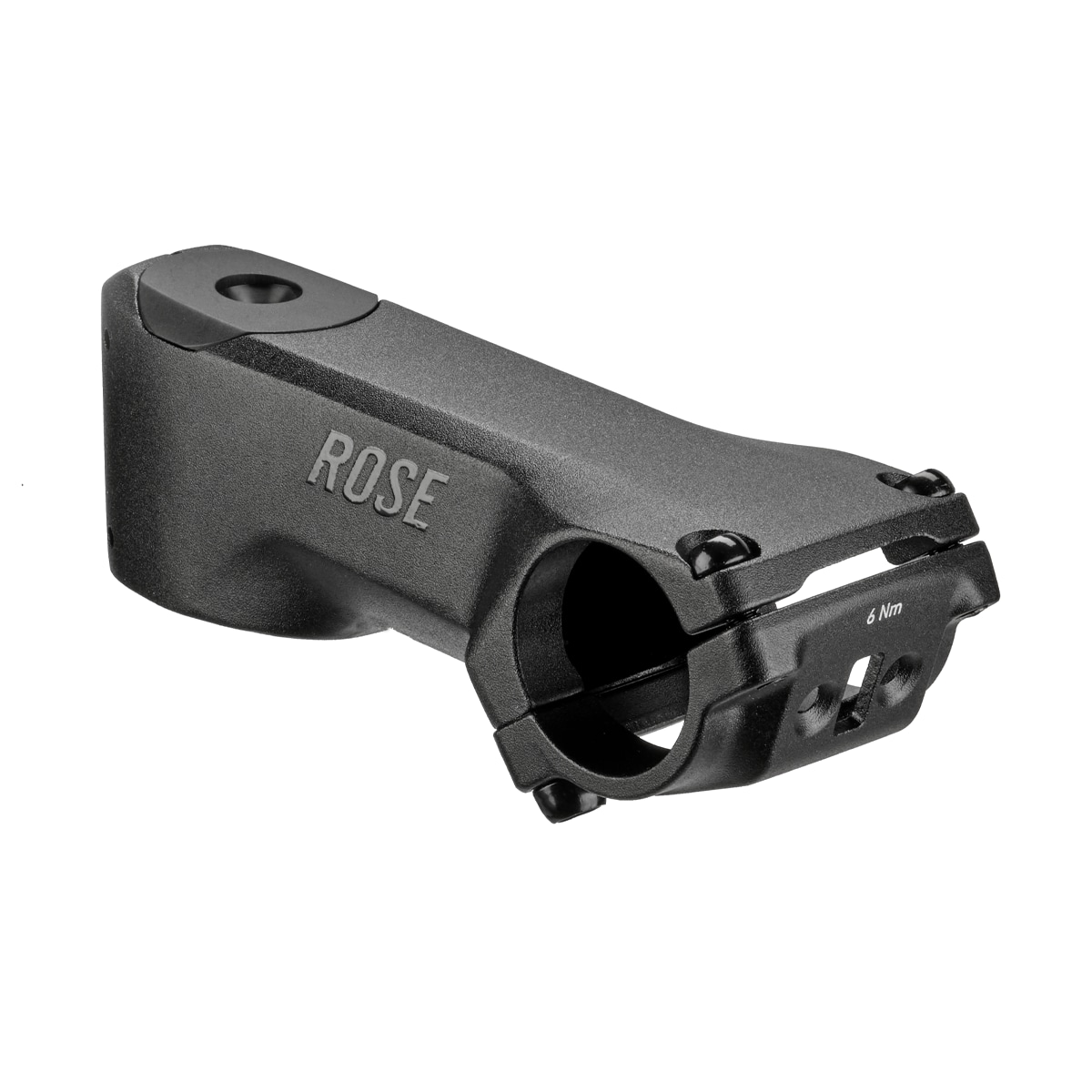

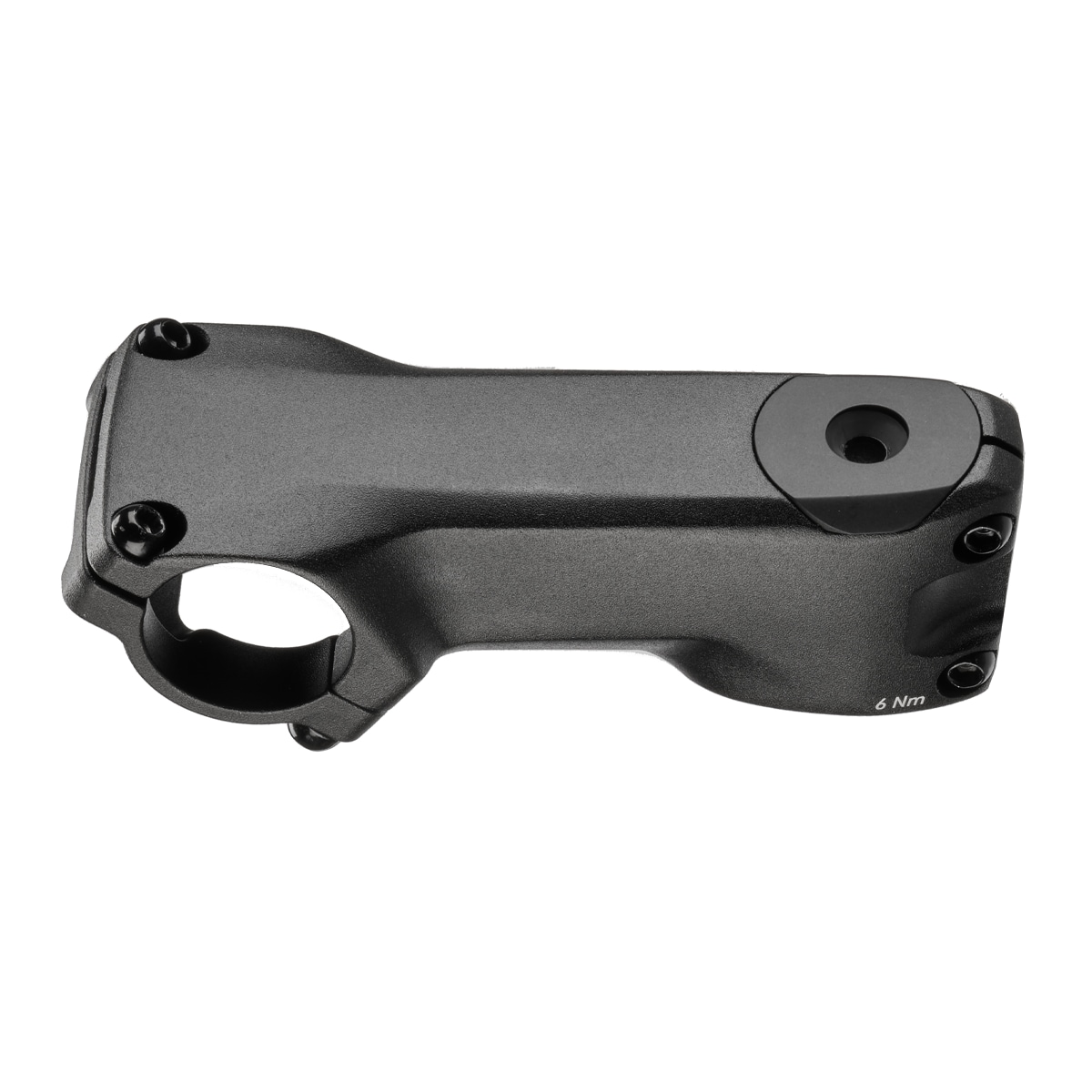

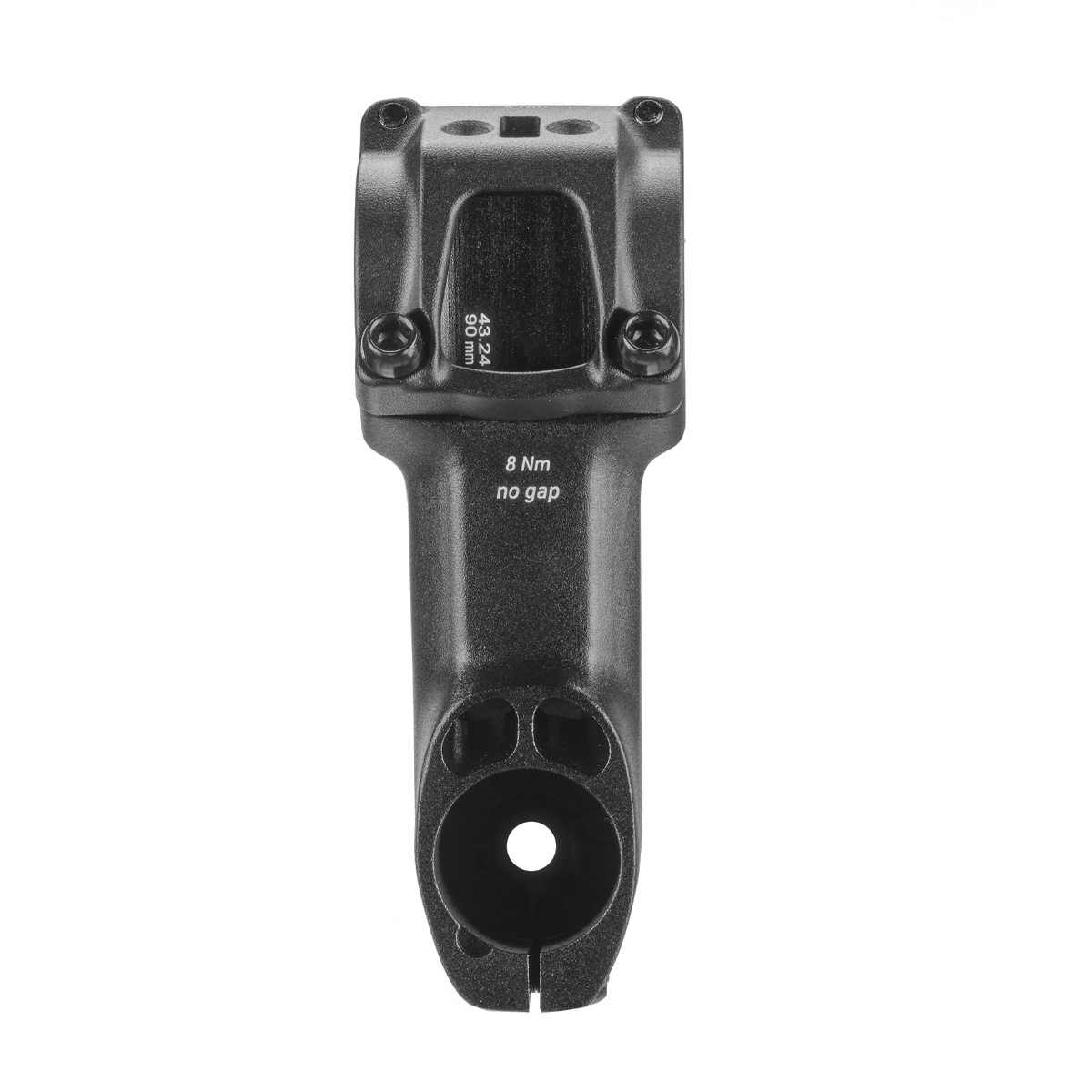

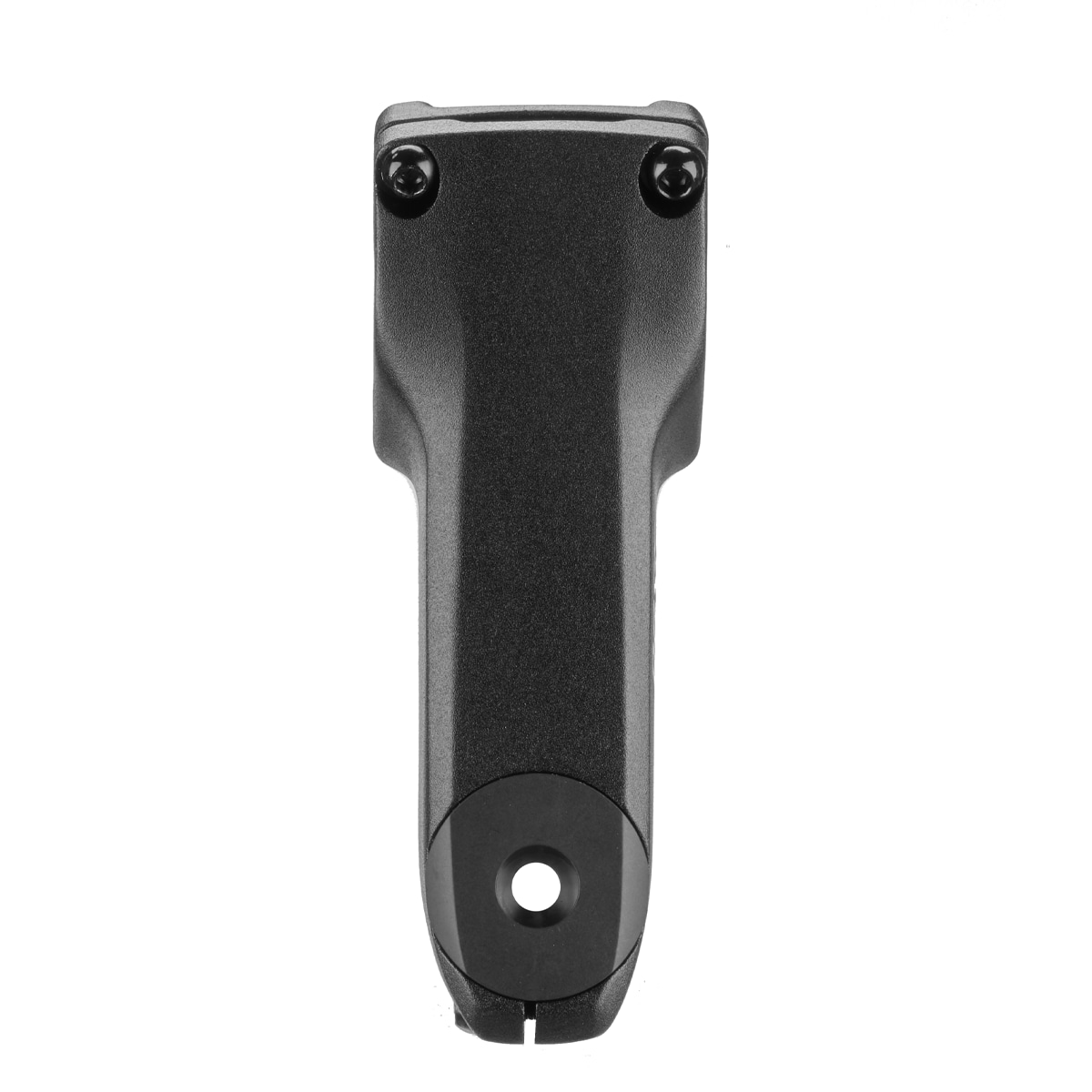

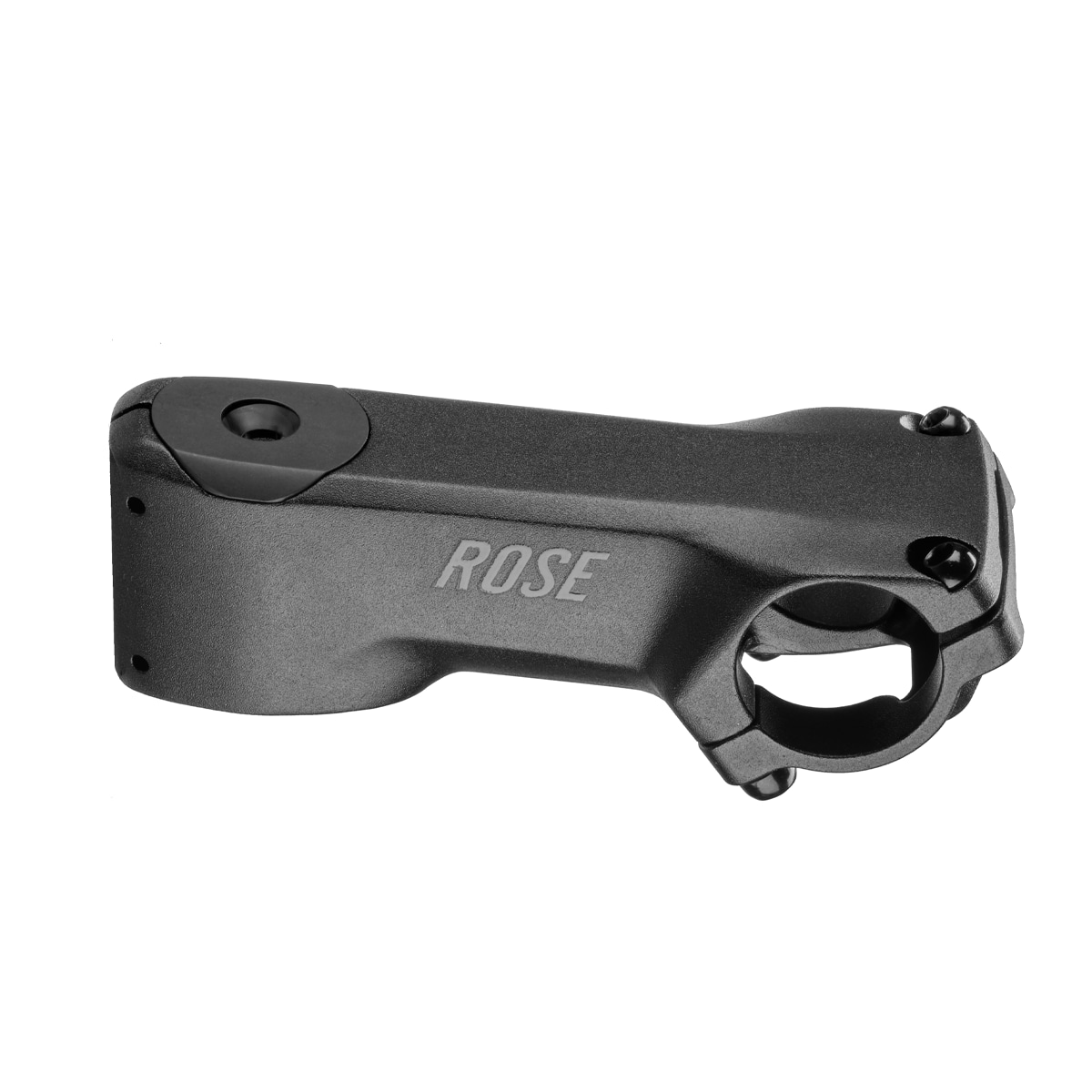

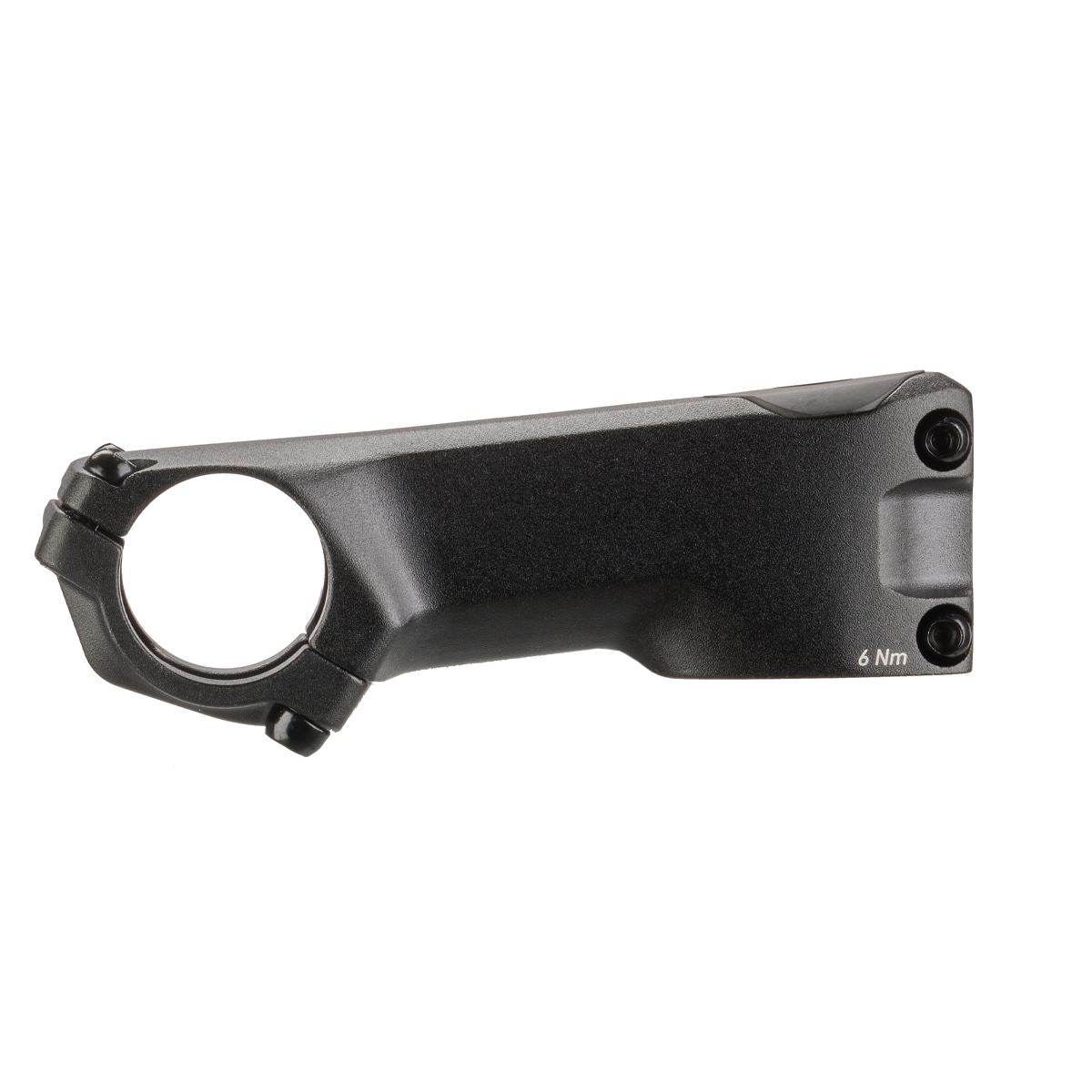

Rose Square Stem

The name says it all: The Square stem from ROSE has a distinctive angular design and emphasises the modern look of your bike with its clear lines. The stem has been fitted to various ROSE Backroad models as well as the Reveal Four Disc and Reveal Plus. In addition to the contemporary design language, the stem has an opening for cable integration, giving your cockpit a cleaner and more minimalist overall look. You can also integrate a separately available mount for your bike computer, which can be attached to the stem cap of the Square and positions your device in the centre and clearly visible in your field of vision. With a sloping angle of -6 degrees, the stem enables a moderately sporty riding position and harmonises perfectly with the geometry of many ROSE bikes.   Details:
• Ahead stem for road bikes and gravel bikes
• Suitable for ROSE Backroad, Backroad+, Reveal Four Disc, Reveal Plus
• Enables cable integration through stem opening

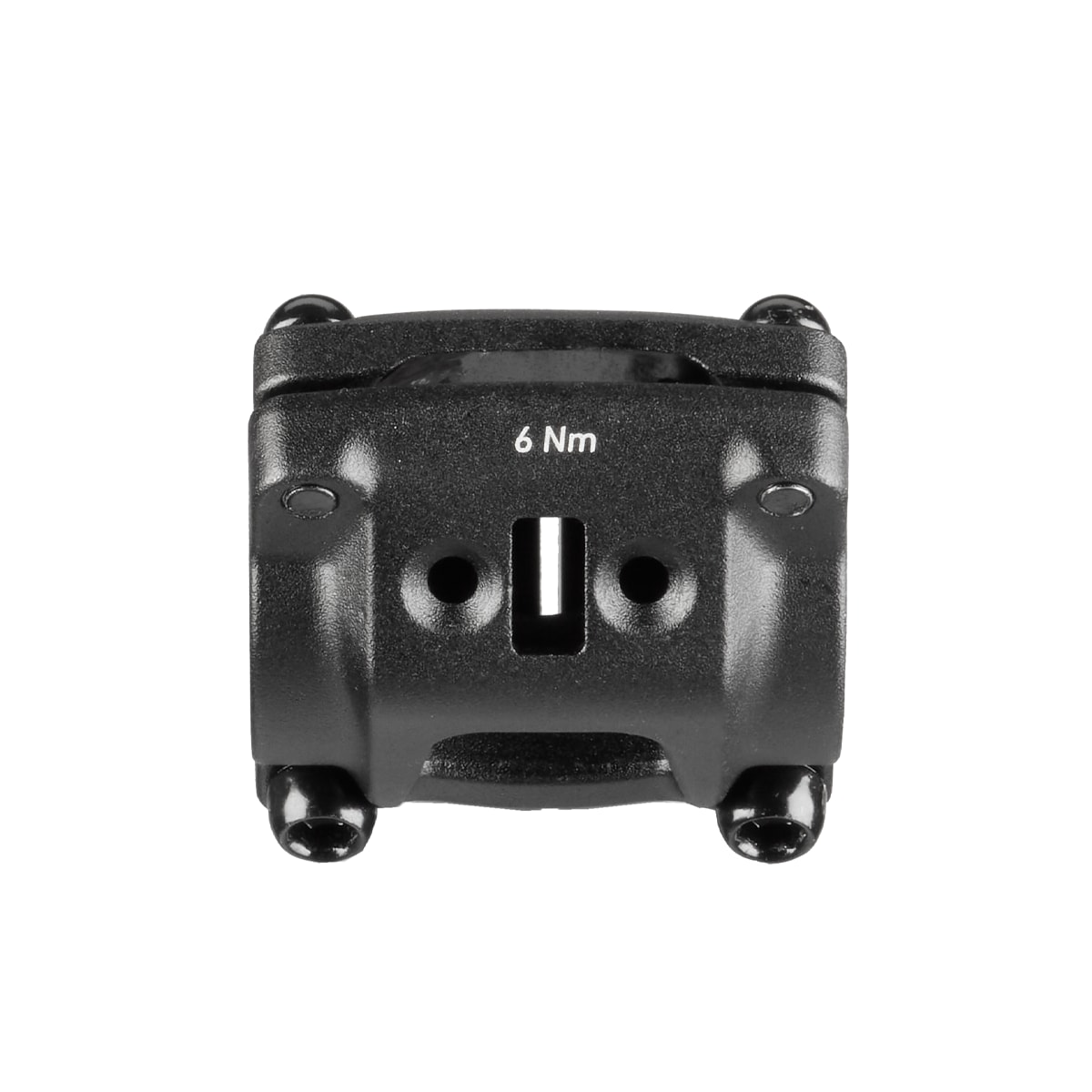

• 4-bolt handlebar clamp can be unscrewed
• Stem cap with integrated holder for bike computer mount
• Incl. Ahead cap   Technical details:
• System weight: max. 110 kg
• For threadless 1 1/8” steerer tubes (28.6 mm)
• Clamping height on steerer tube: approx. 39 mm
• Handlebar clamp: Ø 31.8 mm
• Angle: -6°
• Material: Aluminium T6061 (stem), glass fibre reinforced plastic (Ahead cap), stainless steel (screws)
• Weight: approx. 185 g (90 mm version, incl. Ahead cap)   Use category: 2 + 6 (according to DIN EN 17406)
Suitable for use on paved and unpaved roads as well as gravel paths and moderate trails. The wheels may also loose contact with the ground. Drops should not be higher than 15 cm. Also approved for high speeds of over 50 km/h.   Available with a length of:
• 80 mm
• 90 mm
• 100 mm
• 110 mm
• 120 mm
Please choose the desired size.    In the box:
• 1 ROSE Square stem
• 1 Ahead cap   Tip:
You can find the bike computer mount that matches the stem under prod. code: 2302924.

Manufacturer: Rose Bikes GmbH, Schersweide 4, 46395 Bocholt, Germany, www.rosebikes.de
