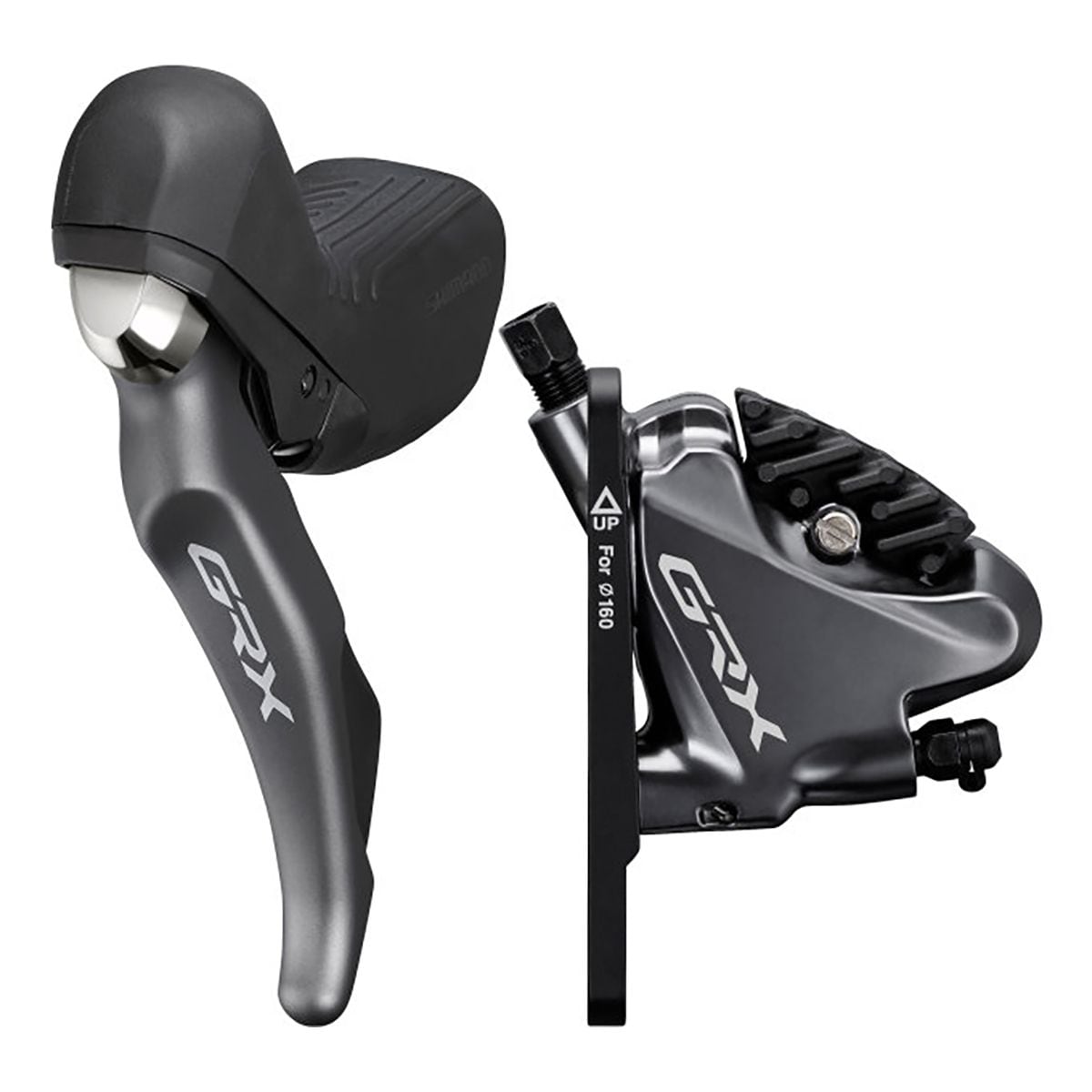

SHIMANO GRX ST-RX810 Left Brake Lever for Dropper Seat Posts incl. BR-RX810 Calliper

Explore beyond!
Discover the almost endless possibilities of modern road cycling with SHIMANO GRX components. The RX800 Series at Ultegra/XT level represents the performance-oriented top range of SHIMANO’s gravel- and cross-specific GRX groupsets.

The GRX ST-RX810 STI shift/brake levers with gravel-specific ergonomics are your control unit for maximum shifting performance and outstanding control on rough terrain. The left GRX BL-RX810 brake lever for easy 1x11 drivetrain configuration comes without shifting function, but instead with the option of operating a mechanically-driven dropper post. The STI-lever can also become a remote lever for the dropper post. So your dropper post integrates visually with a gravel or cross bike, while also being fast, easy, and intuitive to operate.

Featuring an 18mm higher axis point than “traditional” SHIMANO road shifters, a curved brake lever profile and an anti-slip textured finish, the levers offer best grip on rough gravel roads and challenging cyclo-cross rides. Yet, the GRX levers also impress with high comfort and reliability on bike-packing adventures with lots of luggage and on daily commutes to work.
In combination with a powerful hydraulic BR-RX810 Flatmount disc brake, SHIMANO offers you a braking system with great braking performance and comfortable braking power modulation thanks to the SERVO-WAVE technology. This provides high safety when riding your gravel bike in bad weather. A wide lever reach adjustment range tops off the package.

Details:
• Left lever incl. brake calliper for front wheel
• Compatible with mechanically-driven dropper posts that require less than 8.3 mm cable stroke and where the gear cable can be attached to the post
• Custom ergonomics (gravel-inspired ergonomics)
• SERVO-WAVE technology for maximum braking performance and outstanding braking power modulation
• ONE WAY BLEEDING for quick and easy bleeding
• FREE STROKE ADJUST bite point adjustment
• Constantly high braking power, even in bad weather

Specs:
• Intended use: Gravel, Road, Cyclocross
• Compatibility: 11-speed / single
• Material: aluminium, composite
• Brake lever: ST-RX810-LA (Front wheel: left lever (for adjustable seat posts, WITHOUT shifting function!))
• Max. cable stroke 8.3 mm
• Cable clips: at the seat post
• Brake calliper: BR-RX810 (Flatmount, 2-piston system (ceramic), flat design)
• Brake hose: SM-BH90
• Brake fluid: SHIMANO mineral oil
• Adjustable free stroke: yes
• Lever reach adjustment integrated (with tool)
• Hose length: 1000 mm (front wheel)
• Brake pads: L03A Ice Tec (with cooling fins), organic
• Weight brake lever: approx. 263 g (each)
• Weight brake calliper: approx. 138 g (each)

In the box:
• 1 SHIMANO GRX BL-RX810-LA brake lever (front wheel, left, for adjustable seat posts, WITHOUT shifting function for 1 x 11 speed)
• 1 SHIMANO GRX BR-RX810 Flatmount front brake caliper (incl. 1 set of brake pads and adapter for 160mm disc rotor)
• 1 SHIMANO SM-BH90 brake hose (1000 mm)
• 1 SHIMANO OPTISLICK gear cable (1800 mm)
• 1 SHIMANO OT-SP41 outer gear cable

Filled and bled ready for installation.

Tip:
For the recommended SHIMANO SM-RT800 Ultegra Centerlock disc rotors see product code: 2260433.
For the single brake/shift levers for left or right side mounting incl. brake calipers see product code: 2286137.



Manufacturer: SHIMANO INC., 3-77 Oimatsu-cho, Sakai-ku, Sakai-shi, Osaka 590-8577, Japan, www.shimano.com
Responsible person: Shimano Europe BV, High Tech Campus 92, 5656 AG Eindhoven, Netherlands, www.shimano.com
