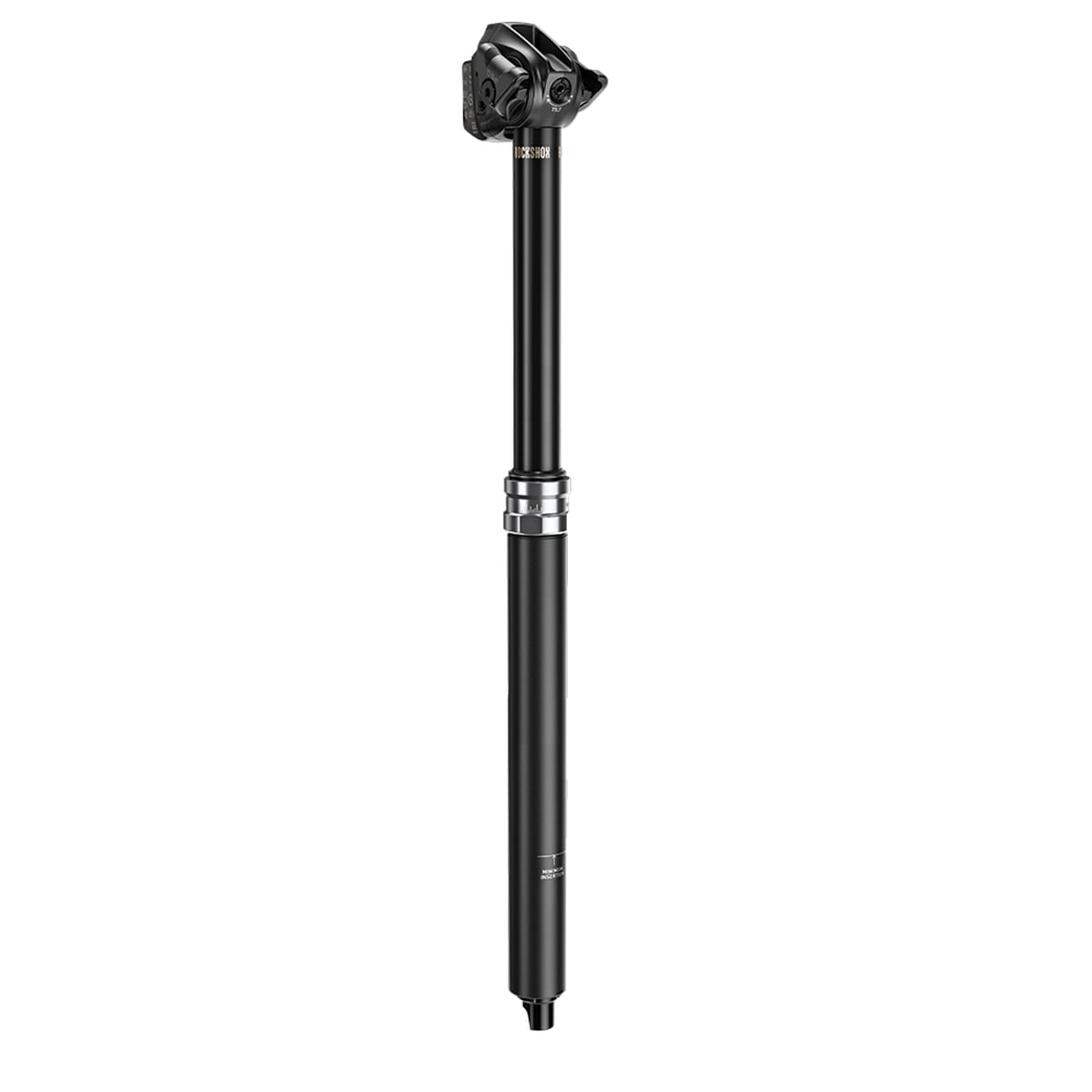

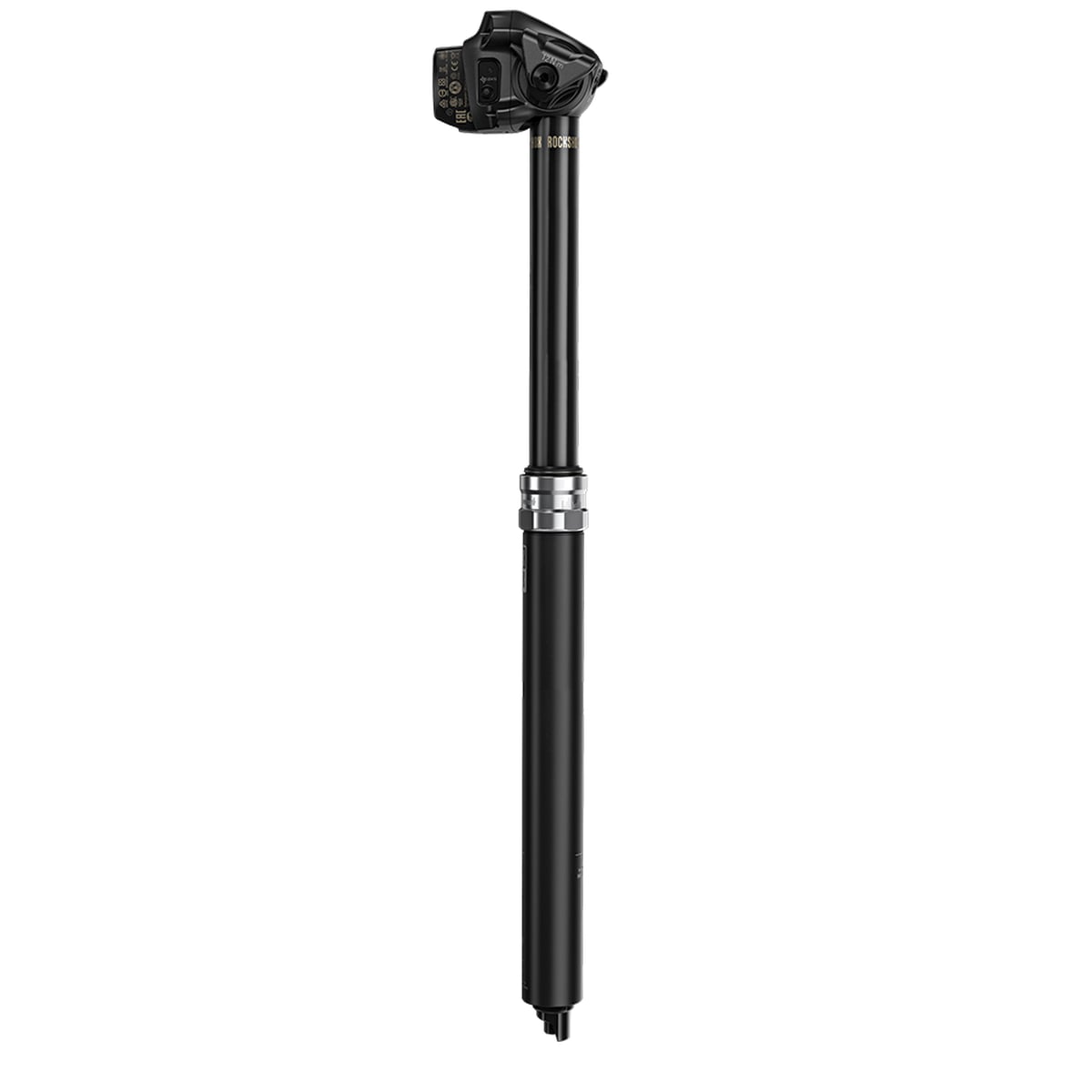

Rock Shox Reverb AXS™ Dropper Post

Drop it in, and send it down!
Completely wireless, simple, easy to install, handle and use and interactive with all SRAM AXS™ components. With the introduction of the electrified Reverb AXS™, Rock Shox opened up completely new possibilities for system integration. In the second version, the Americans have improved small but fine details on the internal IFP piston and the extremely practical Vent Valve™ technology.

Thanks to optimised lubrication and even lower internal friction, it was possible to achieve even faster activation of the set post with less release force. However, if required, you can bleed the Reverb AXS™ within a few steps, without any disassembly of the post thanks to the Vent Valve™ Technology. Simply depress the Vent Valve button and compress the post – that’s it!

Via the SRAM AXS™ app, you can customize the controller touch points for the electronic seat post to your liking and integrate it into an existing AXS™ group. You can adapt the configuration according to your requirements.


Details:
• Wireless dropper post
• Compatible with SRAM AXS™ for easy customisation
• Revised IFP piston for faster actuation and less downward force
• Revised Vent Valve™ technology for easy bleeding without tools
• Practical saddle clamp with just one bolt


Technical details:
• Model: SP-RVB-AXS-A2
• Material shaft/post head: forged 7050 aluminium
• Battery type: AXS™ rechargeable battery (prod. code: 2262222)
• Weight: approx. 681 g (480 mm, ∅ 31,6 mm, 170 mm WITHOUT battery)
• Battery weight: approx. 24 g
• Max. rider’s weight 125 kg
• Protection category: IPX7


150 mm drop version:
• Seatpost Ø: 30.9 / 31.6 (Please indicate your choice)
• Offset/setback: 0 mm
• Height adjustment: 150 mm
• Stack height (lower edge of clamp to centre of saddle frame): approx. 60-210 mm
• Length: 480 mm
• Minimum insertion depth: 80 mm

170 mm drop version:
• Seatpost Ø: 30.9 / 31.6 (Please indicate your choice)
• Offset/setback: 0 mm
• Travel: 170 mm
• Stack height (lower edge of clamp to centre of saddle frame): approx. 60-230 mm
• Length: 440 mm
• Minimum insertion depth: 80 mm


Life and Range
Battery charge indicator on the component itself:
• Green LED: 100% - 50%
• Red LED: 50% - 25%
• Flashing red light: 25%-0% (time to charge!)

Battery life with battery fully charged:
• Approx. 40-60 hrs. riding time (depending on use)


In the box:
• 1 SRAM Reverb™ AXS™ seat post
• 1 AXS™ battery
• 1 charger
• 1 quick start guide
Note:
An AXS™ controller is NOT included in the delivery! The Rock Shox Reverb AXS™ is compatible with all AXS™ controllers.
